KONSTRUCTZ FleetMini ExcavatorsIn Stock • Ships within 10 Business Days

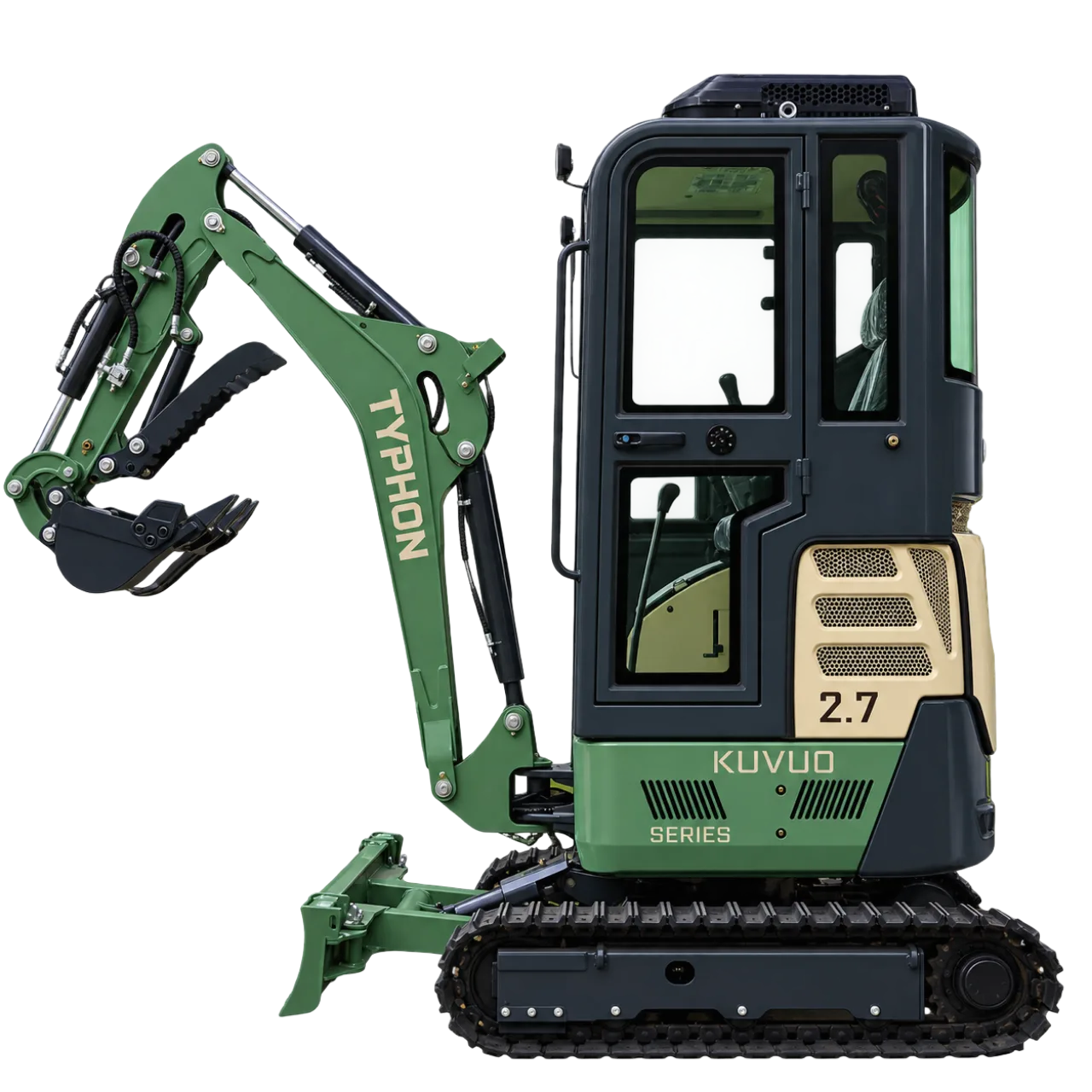

TYPHON KUVUO 2.7

2.7-Ton Mini Excavator with Kubota D1105 Diesel, Climate Cab & Retractable Metal Tracks

Operating Weight5,300 lbs2,404 kg / 2.7 Ton
Engine ModelKubota D110525 HP Diesel (Tier 4 / Euro 5)
Operator StationEnclosed CabAir Conditioning & Heater
Track SystemRetractable TracksHeavy-Duty Metal Crawlers
Travel System2-Speed TravelAxial Piston Drive Motors
ControlsFull Pilot ControlDual Hydraulic Joysticks
Price$19,655.10
Includes Standard Bucket & Hydraulic Thumb
Quantity:
1
More DetailFull Spec Sheet
Need quick jobsite sizing, freight quote, or wholesale terms?Call (213) 214-2203
1-Year Commercial Warranty
Nationwide Flatbed Delivery
EPA Tier 4 Final Engine
In-Stock Parts & Tech Support
Engineering Architecture

Commercial Overview: KUVUO 2.7

The TYPHON KUVUO 2.7 is an advanced 2.7-ton (5,300 lb) compact excavator engineered for demanding excavation, utility installation, site preparation, and foundation footings where high breakout power and operator comfort are paramount.

At the machine's core is an authentic Japanese Kubota D1105 three-cylinder water-cooled diesel engine delivering 25 HP at 2,200 RPM. This proven industrial powertrain drives a high-efficiency load-sensing hydraulic system with proportional pilot joystick controls, delivering smooth, simultaneous multi-function arm, boom, and bucket articulation.

Built for year-round commercial productivity, the KUVUO 2.7 features a fully enclosed operator cabin equipped with factory-integrated climate control (air conditioning and heater), 360-degree tempered safety glass, sound-dampening insulation, and bright LED exterior job lights.

For superior worksite versatility, the undercarriage incorporates hydraulically retractable heavy-duty metal tracks. Operators can narrow the machine width to squeeze through restricted gates and alleys, then extend the tracks for rock-solid stability during high-reach dumping and deep trenching. Independent boom swing articulation enables precise digging directly flush against existing walls and fence lines.

Competitive Advantage

Why Contractors Choose the KUVUO 2.7

4 critical engineering decisions that translate into lower operating costs and higher jobsite throughput.

Authentic Kubota D1105 Diesel Engine

Engineering Feature
25 HP Commercial Japanese Powertrain
Technical Reason
Three-cylinder liquid-cooled diesel architecture provides heavy low-end torque for digging through hardpacked clay and rocky aggregate.
Practical Contractor Benefit
Proven commercial durability, high fuel efficiency, low vibration, and unmatched nationwide parts and service availability.

All-Weather Enclosed Climate Cabin

Engineering Feature
Sealed Cab with Integrated A/C & Heating
Technical Reason
Heavy-gauge steel cabin frame with insulated panelling, automotive HVAC climate unit, and panoramic tempered safety glass.
Practical Contractor Benefit
Keep operators comfortable and productive through blistering summer heat, dust storms, freezing winter cold, and rain.

Hydraulically Retractable Metal Tracks

Engineering Feature
Adjustable Track Gauge & Steel Crawlers
Technical Reason
Hydraulic track cylinders allow instant track gauge expansion and retraction, paired with durable all-terrain metal links.
Practical Contractor Benefit
Navigate narrow access points and residential garden gates, then expand for maximum stability without risk of de-tracking.

Full Pilot Joystick Controls & 2-Speed Travel

Engineering Feature
Proportional Hydraulic Metering & Dual Speed
Technical Reason
Low-effort pilot joysticks provide feather-touch hydraulic response, while dual axial piston motors offer low torque and high travel speeds.
Practical Contractor Benefit
Drastically reduce operator fatigue during long shifts and move quickly between digging stations across large jobsites.

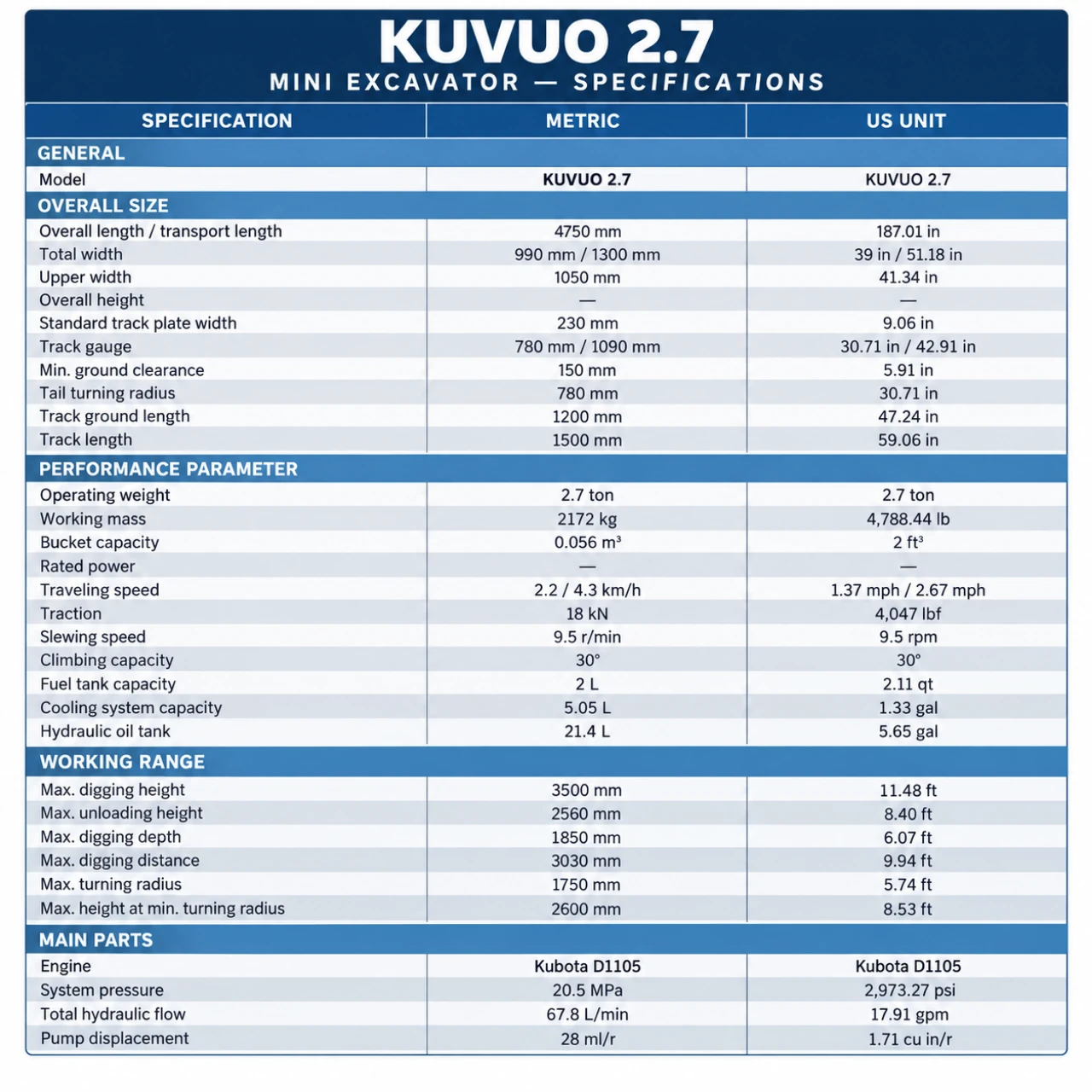

Technical Data Sheets

TYPHON KUVUO 2.7 Full Specifications

Dual-unit specifications (US Standard primary, Metric secondary) verified for commercial procurement and jobsite validation.

Engine & Powertrain

Engine Make & ModelKubota D1105 (Japan)
Engine Type3-Cylinder, Liquid-Cooled Diesel
Rated Power25 HP (18.5 kW) @ 2,200 RPM
Emission StandardEPA Tier 4 Final / Euro 5
Fuel Tank Capacity6.87 Gal (26 L)

Operating Specifications

Operating Weight5,300 lbs (2,404 kg / 2.7 Ton)
Standard Bucket Capacity1.41 ft³ (0.04 m³)
Standard Bucket Width17.7 in (450 mm)
Max Digging Depth8.20 ft (2,500 mm)
Max Digging Height12.47 ft (3,800 mm)
Max Dumping Height8.53 ft (2,600 mm)
Max Digging Radius13.12 ft (4,000 mm)

Hydraulic & Travel System

Hydraulic Pump TypeVariable Displacement Axial Piston Pump
System Pressure2,900 PSI (20 MPa)
Control SystemFull Pilot Hydraulic Joysticks
Auxiliary HydraulicsDual Direction Line with Flat-Face Couplers
Travel Motors2-Speed Axial Piston Motors
Low Travel Speed1.5 MPH (2.4 km/h)
High Travel Speed2.7 MPH (4.3 km/h)
Gradeability30° (58% Slope)
Boom Swing AngleLeft 60° / Right 55°

Undercarriage & Tracks

Track TypeHeavy-Duty Retractable Metal Tracks
Retracted Track Width39.4 in (1,000 mm)
Extended Track Width51.2 in (1,300 mm)
Track Shoe Width9.8 in (250 mm)
Ground Clearance8.7 in (220 mm)

Operator Cabin & Comfort

Cabin ConstructionFully Enclosed Steel ROPS/FOPS Structure
Climate ControlHigh-Output Air Conditioner & Heater
Glazing360° Tempered Safety Glass with Wiper
LightingHigh-Lumen LED Work Lights (Boom & Roof)
Operator SeatAdjustable Suspension Seat with Armrests
Logistics & Tooling

Jobsite Footprint & Compatibility

Clear dimension clearances, trailer towing parameters, and auxiliary attachment options.

Dimensions & Access Clearance

Operating dimensions: Approximately 13.5 ft transport length × 39.4 in to 51.2 in retractable width × 7.9 ft total height. Tail swing radius allows confident operation in confined urban parcels.

Trailer Towing & Hauling

At 5,300 lbs operating weight and a sub-40-inch retracted track width, the KUVUO 2.7 transports readily on a standard tandem-axle utility or equipment trailer behind a 1/2-ton or 3/4-ton pickup truck.

Compatible Hydraulic Attachments

Equipped with factory pre-plumbed dual-action auxiliary hydraulic lines, the KUVUO 2.7 seamlessly operates hydraulic thumbs, post hole augers, breaker hammers, tilting grading buckets, and trenching buckets.

Practical Workloads

Where the KUVUO 2.7 Excels

Common jobsite tasks and industry applications where this machine delivers maximum efficiency.

01

Utility & Service Line Trenching

Excavate deep, straight trenches for electrical conduits, fiber optics, water mains, and sewer lines.

02

Foundation Footings & Slab Preparation

Dig precise perimeter footings, grade beam trenches, and basement retaining walls with boom-swing clearance.

03

Wall-Flush & Boundary Digging

Articulated boom swing enables digging directly parallel to property fences, masonry walls, and existing buildings.

04

Demolition & Hydraulic Breaker Work

Power hydraulic hammers to break up concrete slabs, driveways, foundations, and rock formations.

05

Commercial & Residential Landscaping

Shape slopes, dig tree root balls, place heavy decorative boulders, and grade large garden areas.

06

Septic Tank & Drainage Systems

Reach deep sub-grade levels to place residential septic tanks, French drains, and retention basins.

Ideal Fleets

Built for These Trades & Operators

Excavation & Utility Contractors

Crews needing reliable Kubota diesel power, pilot precision, and deep trenching reach in residential developments.

Plumbing, Septic & Drainage Specialists

Specialists who require an enclosed climate cab for full-day trenching and heavy bucket breakout force.

Commercial Landscapers & Hardscapers

Contractors operating with rock grapples, grading buckets, and augers across complex residential yards.

Property Owners & Farm Operators

Landowners seeking a durable, long-lasting Kubota-powered excavator with metal tracks for rugged terrain.

Model FAQs

TYPHON KUVUO 2.7 Technical Inquiries

Detailed answers on hydraulics, fluid maintenance, transport, and operation.

What engine is in the KUVUO 2.7 mini excavator?
The KUVUO 2.7 is powered by an authentic Japanese Kubota D1105 three-cylinder liquid-cooled diesel engine rated at 25 HP, fully certified for EPA Tier 4 Final and Euro 5 emissions.
Does the cab have both heating and air conditioning?
Yes. The KUVUO 2.7 comes standard with a fully enclosed operator cabin featuring factory-installed automotive air conditioning, cabin heater, front window wiper, and sliding ventilation glass.
How do the retractable tracks operate?
Retractable metal tracks are controlled hydraulically from inside the cabin. Operators retract the tracks to 39.4 inches to navigate narrow fence gates and transport trailers, then expand them to 51.2 inches for wide-stance stability when digging.
What is the warranty and parts support for the KUVUO 2.7?
All KONSTRUCTZ equipment is backed by full manufacturer warranty coverage and direct USA parts dispatch. Genuine Kubota engine parts and filters are also widely supported through any authorized Kubota dealer.
Can the KUVUO 2.7 dig alongside walls and fences?
Yes. The KUVUO 2.7 features hydraulic boom swing articulation (up to 60° left and 55° right), allowing the operator to offset the digging arm and excavate parallel to walls, fences, and foundations without repositioning the tracks.
